亿光光耦EL0631
EL0631光耦参数
• High speed 10Mbit/s
•10kV/μs min. common mode transient immunity (EL0631)
• Guaranteed performance from -40 to 85℃
• Wide operating temperature range of -40°C to 100°C
• Logic gate output
• High isolation voltage between input
and output (Viso=3750 V rms )
• Pb free and RoHS and Halogen free compliant.
• cUL approved (No.214129)
• VDE approved (No. 132249)
• SEMKO approved
• NEMKO approved
• DEMKO approved
• FIMKO approved

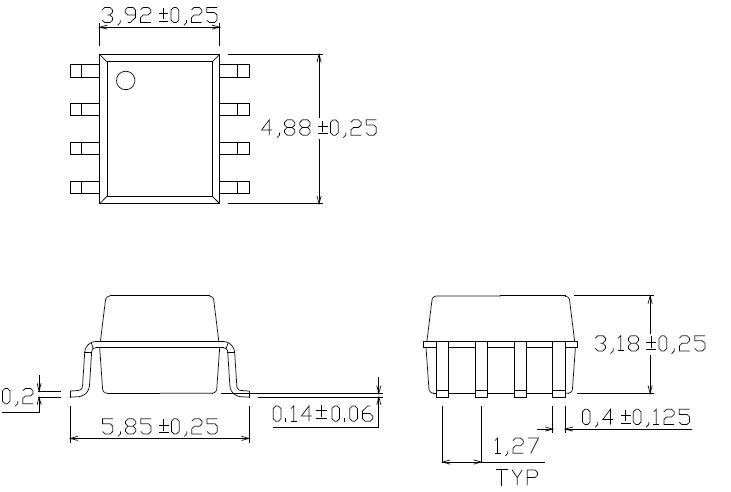

EL0631为台湾亿光双通道高速光耦,10M的传输速率,小型贴片封装,1.27MM的PIN脚距离。

替代HCPL-0630,HCPL-0631,ACPL-064等型号光耦。
