亿光EL3H7-G光耦
EL3H7,EL3H7B,EL3H7C光耦参数
Halogens free
• Current transfer ratio
(CTR: 50~600% at IF =5mA, VCE =5V)
(CTR: 40~320% at IF =10mA, VCE =5V)
• High isolation voltage between input and output (Viso=3750 V rms )
• Compact 4 Pin SSOP with a 2.0 mm profile

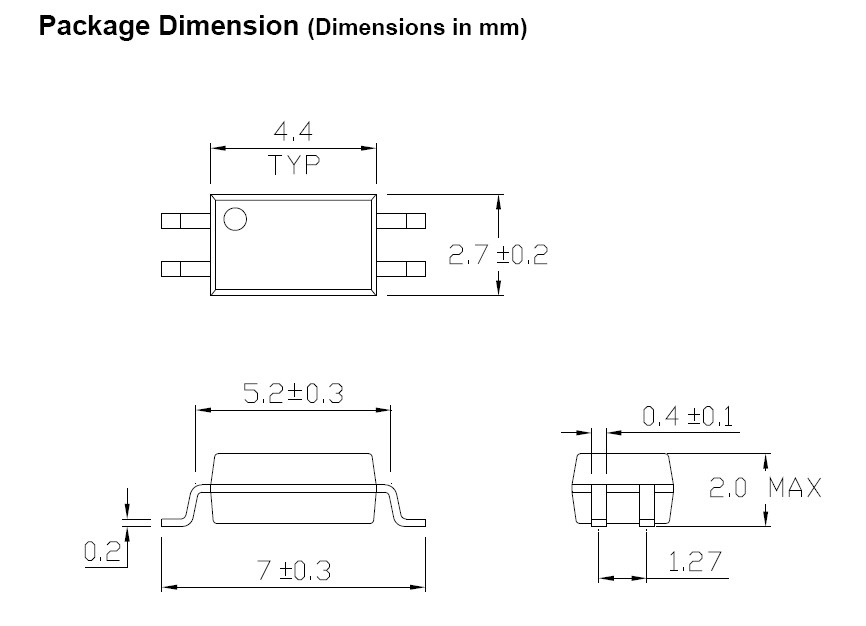

• Pb free and RoHS compliant.</P><P> 尺寸:4.4*4.1*2(MM)
CTR值
EL3H7B:130——260%; EL3H7C:200——400%;

亿光EL3H7光耦可以直接替代一下型号的光耦:

ACPL-217,PC3H7,PS2801-1,PS2801,TLP281-1,TLP291-1,P281
