亿光光耦EL3021
亿光光耦EL3021,EL3022,EL3033光耦参数
Features:
• Peak breakdown voltage
- 250V: EL301X
- 400V: EL302X
- 600V: EL305X
• High isolation voltage between input and output (Viso=5000 V rms )

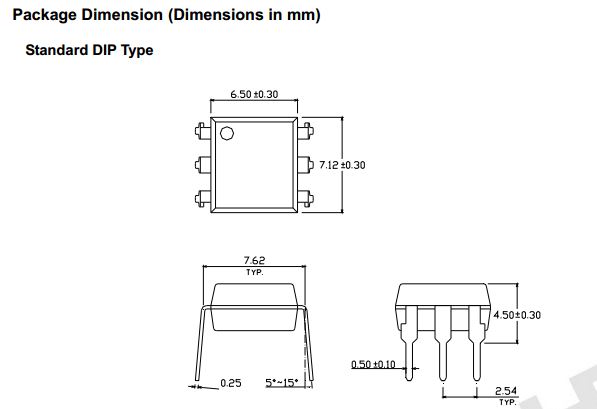

• Compact dual-in-line package
• Pb free and RoHS compliant.
•UL and cUL approved(No. E214129)
• VDE approved (No.132249)
• SEMKO approved
• NEMKO approved
• DEMKO approved

Description

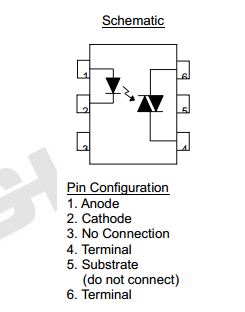

The EL301X, EL302X and EL305X series of devices each consist of a GaAs infrared emitting diode optically
coupled to a monolithic silicon random phase photo Triac.
They are designed for interfacing between electronic controls and power triacs to control resistive and inductive
loads for 115 to 240 VAC operations.

EL3021,EL3022,EL3033为双向可控硅光耦,VDRM=400V,无过零检测
