亿光可控硅光耦EL3052
EL3051,EL3052,EL3053光耦参数
Features:
• Peak breakdown voltage
- 250V: EL301X
- 400V: EL302X
- 600V: EL305X
• High isolation voltage between input and output (Viso=5000 V rms )

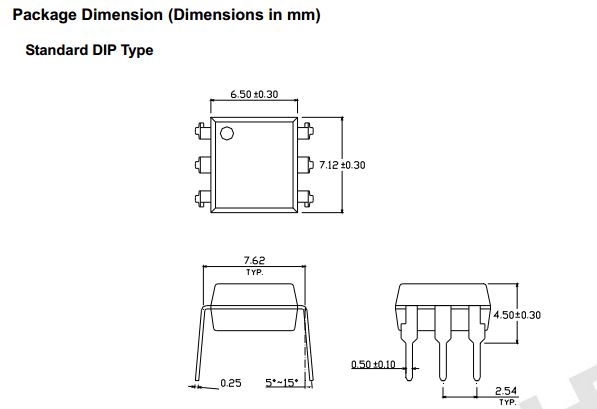

• Compact dual-in-line package
• Pb free and RoHS compliant.
•UL and cUL approved(No. E214129)
• VDE approved (No.132249)
• SEMKO approved
• NEMKO approved
• DEMKO approved
•FIMKO approved

Description

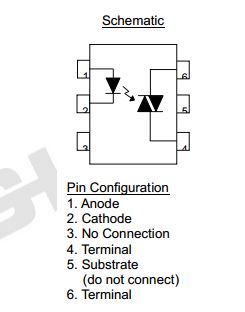

The EL301X, EL302X and EL305X series of devices each consist of a GaAs infrared emitting diode optically
coupled to a monolithic silicon random phase photo Triac.
They are designed for interfacing between electronic controls and power triacs to control resistive and inductive
loads for 115 to 240 VAC operations.
Applications
 Solenoid/valve controls
 Lamp ballasts
 Static AC power switch
 Interfacing microprocessors to 115 to 240Vac peripherals
 Incandescent lamp dimmers
 Temperature controls
 Motor controls
