EL3063可控硅光耦
EL3061,EL3062,EL3063光耦参数
Features:
• Peak breakdown voltage
- 250V: EL303X
- 400V: EL304X
- 600V: EL306X
- 800V: EL308X
• High isolation voltage between input and output (Viso=5000 V rms )

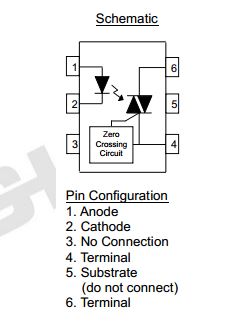

•Zero voltage crossing
• Pb free and RoHS compliant.
•UL and cUL approved(No. E214129)
• VDE approved (No.132249)
• SEMKO approved
• NEMKO approved
• DEMKO approved
•FIMKO approved

EL3061,EL3062,EL3063可控硅光耦:

VDRM=600V,过零检测可控硅光耦;

EL3061(IFT=15MA); EL3062(IFT=10MA); EL3063(IFT=5MA);
